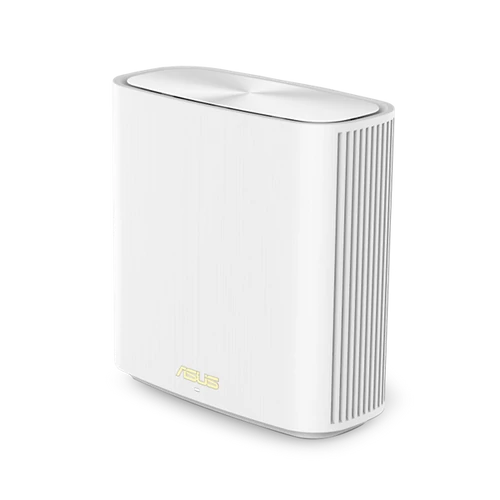

ASUS Wireless ZenWifi Mesh Networking system AX5400, XD6(W-1-PK)

MODEL NAME

XD6 (W-1-PK)
XD6 (W-2-PK)

NETWORK STANDARD

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

PRODUCT SEGMENT

AX5400 ultimate AX performance : 574+4804 Mbps

AX TECHNOLOGY

Yes

DATA RATE

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4808 Mbps

ANTENNA

internal antenna x 6

TRANSMIT/RECEIVE

2.4GHz 2x2
5GHz 4x4

PROCESSOR

1.5 GHz tri-core processor

MEMORY

256 MB Flash
512 MB RAM

BOOSTS SPEED

OFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM high data rate
20/40/80/160 MHz bandwidth

OPERATING FREQUENCY

2.4 G Hz / 5 GHz

PORTS

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

BUTTON

WPS Button, Reset Button

LED INDICATOR

Power x 1

POWER SUPPLY

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current

PACKAGE CONTENT

ZenWiFi XD6
RJ-45 cable
Power adapter
Warranty card
Quick start guide

PRODUCT WEIGHT (G)

435 g

REMARK

Content may vary in different regions and packages.

AIMESH

AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

ROUTER APP

ASUS Router APP : Yes

GAME

Game Boost/acceleration : No
WTFast : No

ALEXA

Support Alexa skill : Yes

IFTTT

Support IFTTT : No

AIPROTECTION

AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes

PARENTAL CONTROL

Parental Control : Yes
Parental Control Customized Internet schedule : Yes

TRAFFIC CONTROL

Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Website history : Yes

WIRELESS

IPv6 : Yes
MU-MIMO : Yes
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 9
Guest Network Connection time limit : Yes
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : No
Universal beamforming : Yes
Explicit beamforming : Yes

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : No
Android tethering : No
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
DMZ : Yes
DDNS : Yes
Let's Encrypt : Yes

LAN

DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64

VPN

VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No

USB APPLICATION

HDD hibernation : No
Safely Remove disk : No
AiCloud : No
Download master : No
AiDisk : No
Media Server : No
Time Machine : No
Samba Server : No
FTP Server : No
Shared Folder privileges : No

ADMINISTRATION

Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes

PRODUCT DIMENSIONS WITH ANTENNAS (L*W*H) MM

126.4 x 59.05 x 129.7 mm

GIFT BOX DIMENSION (L*W*H) MM

1PK : 184 x 178 x 115 mm
2PK : 315 x 174 x 166.5 mm

GIFT BOX WEIGHT (KG)

1PK : 0.94 kg
2PK : 1.8 kg

CARTON DIMENSION (L*W*H) MM

1PK : 407 x 373 x 200 mm
2PK : 530 x 330 x 196 mm

CARTON GROSS WEIGHT (KG)

1PK : 6.6 kg
2PK : 6.5 kg
